Equipment for SALE

MACHINERY FOR SALE

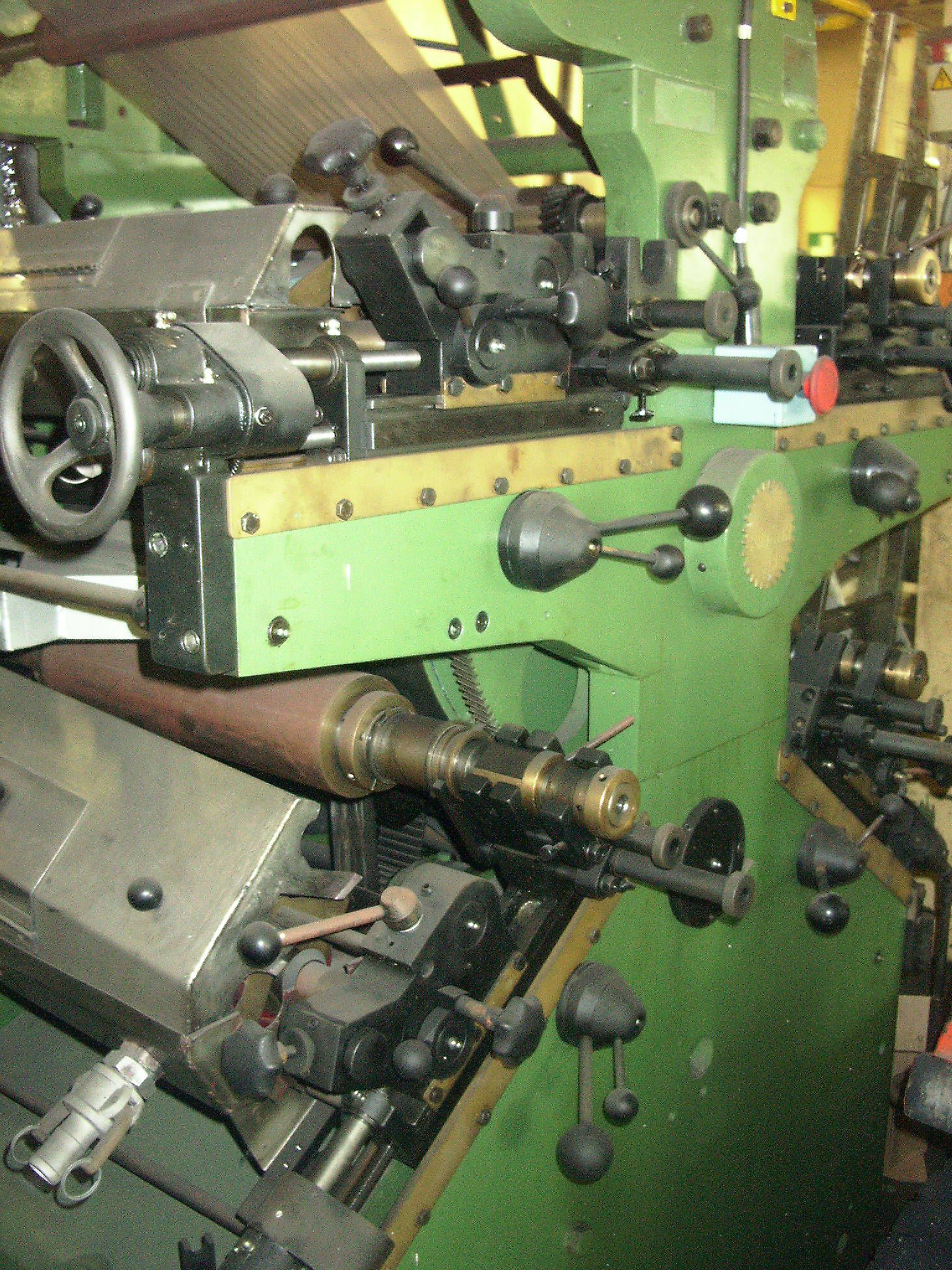

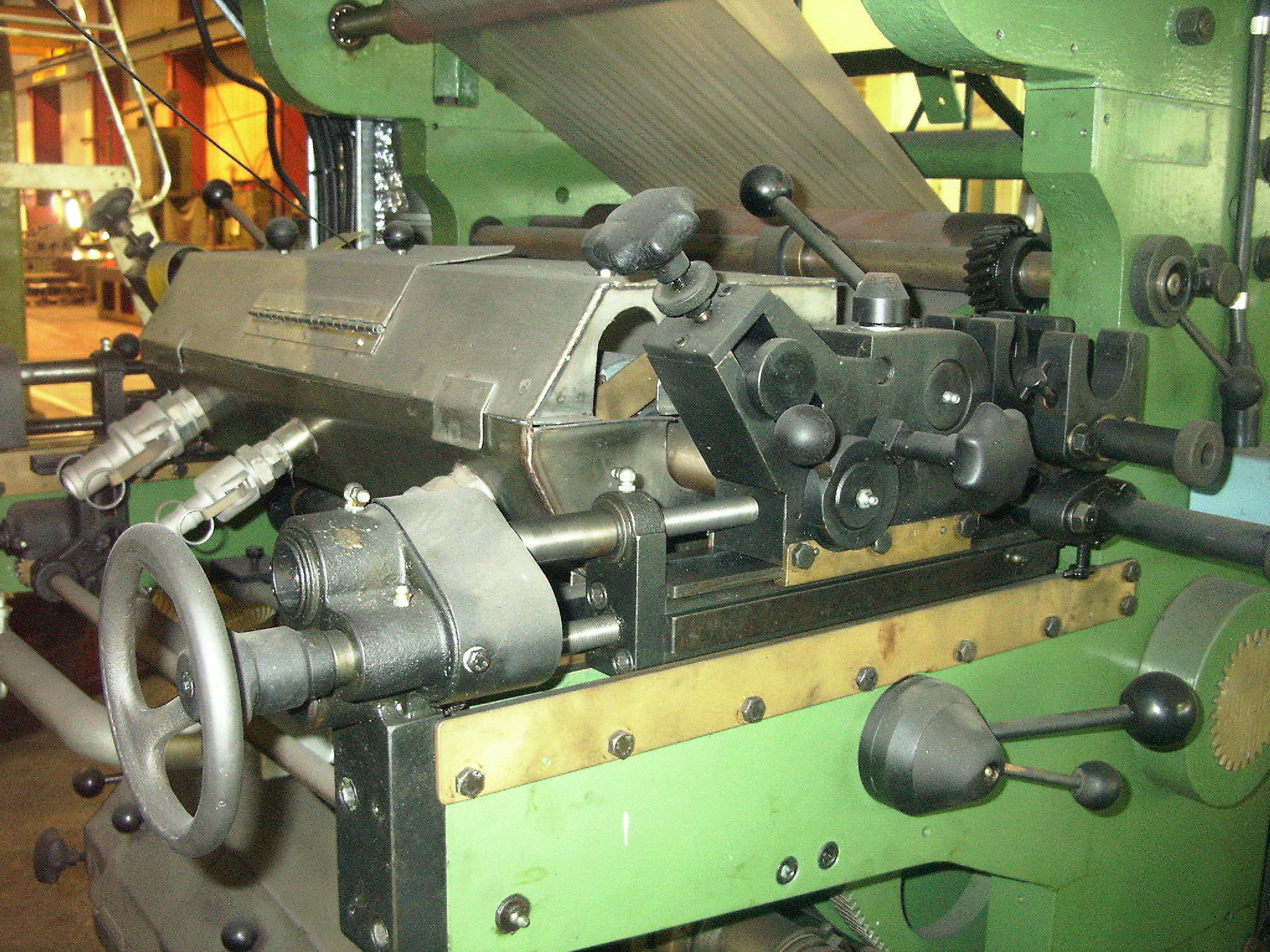

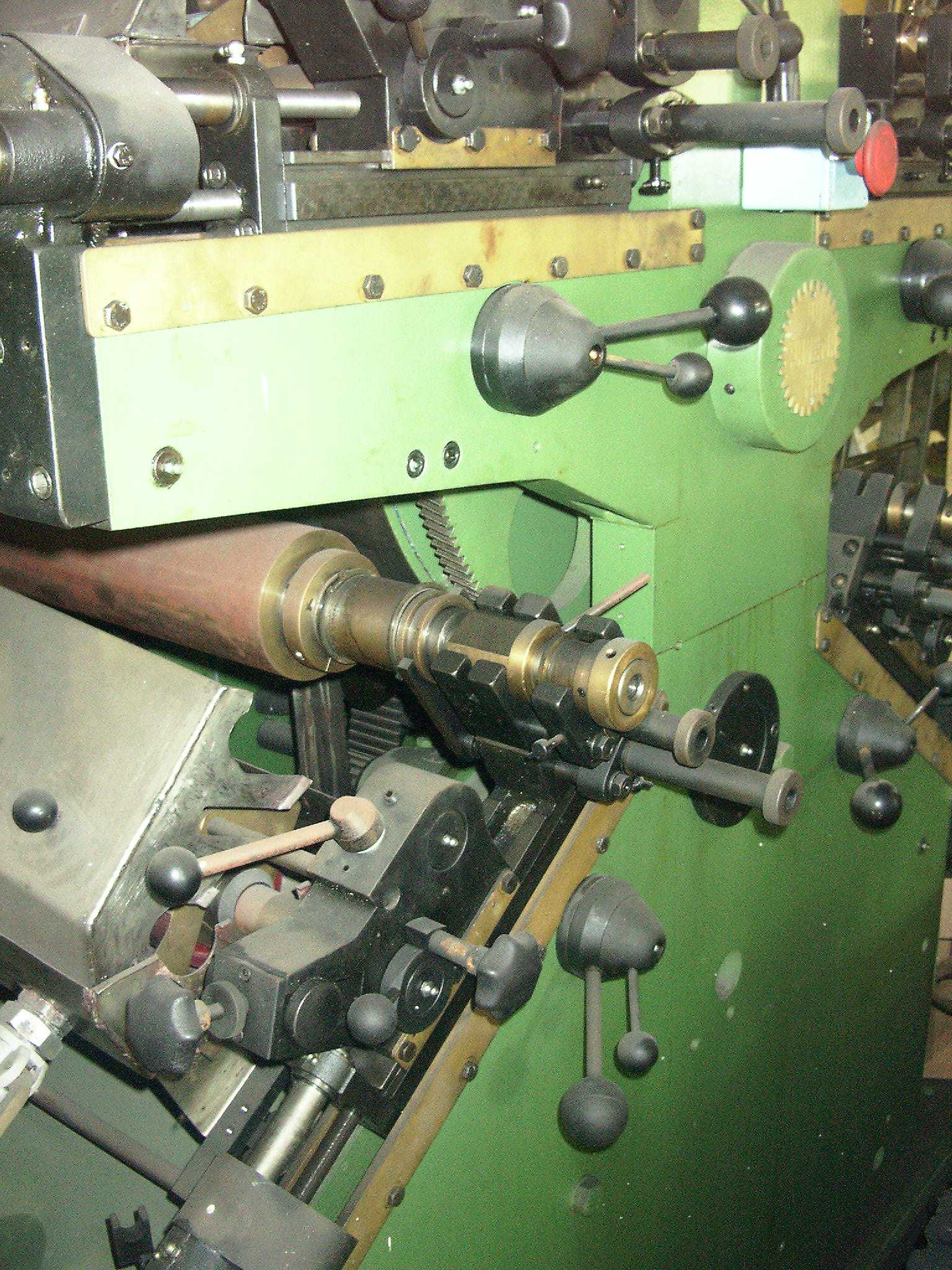

One 4-colour PAVEMA ‘C.I.’ Flexographic Printing Head:


REFURBISHED TO A HIGH STANDARD

Maximum print width               500mm (20”)

Maximum web width               520mm (20.5”)

Print repeat length range          360mm (14”) to 600mm (23.5”)

Gear pitch                             10mm CP

Common Impression Cylinder   600mm diameter, single shell

Inks                                     water based

Ink metering system               ‘Two Roll’

Print/Anilox roll positioning      Manual leadscrews - with Vertical "Print Throw on/off" system

Approximate overall size of machine: 1.7m long x 1.6m wide x 1.8m high

·    Price: £9,500

·    Information and specifications are approximate and for guidance only.

·    Ballpark prices (in British Pound Sterling) are for machinery sold As Seen, net Ex-Works, un-packed: - any work carried out by our
  technicians will be charged extra at our standard rates.

STOCK PARTS - Extensive range of REPLACEMENT PARTS for Cobden Chadwick & Simon VK machinery

SLO-SYN & MAE Motors:

13-off,     SLO-SYN Explosion Proof, Type X250-1030U

2-off,       SLO-SYN Explosion Proof, Type X252

2-off,       SLO-SYN, Type M062-LE09

1-off,       SLO-SYN, Type MX93-FF-206u

1-off,       MAE, Type HY200 2232 0470 ACMB - A4141

6-off,       Stepping Motor Gearbox, 3 to 1, Ref. 220763-004

Mitsubishi MAGNETIC PATICLE COUPLINGS:

7-off,       ZKB 20B2 / torque 20kgm / DC 24V, 3.8Amps @ 75°C

LOAD CELLS:

1-off,       Cleveland Kidder, Type S-1T, MWF 50lbs

1-off,       Cleveland Kidder, Type SC-1T, MWF 50lbs

2-off,       Cleveland Kidder, Type ECR-2T, MWF 250lbs

2-off,       Cleveland Kidder, Type SC-2T, MWF 250lbs

1-off,       Cleveland Kidder, Type S-2T, MWF 600lbs

2-off,       Cleveland Kidder, Type SCM-2T, MWF 2.5kN

1-off,       Cleveland Kidder, Type SM-2T, MWF 2700N

1-off,       Cleveland Kidder, Type SCM-2T, MWF 1000N

DOCTOR DLADE (note sizes are approximate) plus a range of Tresu and Chadwick Seals:

Steel: 35mm x 0.25mm (1 x 40m & 1 x 50m reel length "nominal")

Steel: 40mm x 0.25mm (1 x 50m reel length "nominal")

Steel: 45mm x 0.152mm (part reel)

Steel: 50mm x 0.152mm (part reel)

"Uddeholm" Carbon Steel: 10mm x 0.152mm (part reel)

"Uddeholm" Carbon Steel: 10mm x 0.152mm (1 x reel)

"Uddeholm" Carbon Steel: 10mm x 0.20mm (part reel)

Plastic: 22mm x 0.20mm (part reel)

HYDRAULIC MOTORS:

9-off,       Parker, Type MF 103/25mm shaft, Ref. 761-0130-110-000-1

2-off,       Parker, Type 41-93/25mm shaft, Ref. 042-036-AT

1-off,       Parker, Type C 9384/25mm shaft, Ref. 052-1-AT

3-off,       Danfoss, Type OMM 32/16mm shaft, Ref. 151G0003/3

1-off,       Ross/TRW, Type MC 050/1” shaft, Ref. 700-0070-120-000

1-off,       TRW, Type MC 050/25mm shaft, Ref. 700-0050-111-000

1-off,       TRW, Type MAC 06901/1” shaft, Ref. 025850

HYDRAULIC CLAMPS:

6-off,       Spencer Franklin, Power Open Ram, Ref. 3200

10-off,     Spencer Franklin, Power Open Ram, Ref. 3000

We also stock a selection of e.g. electronic dives, PCB’s, linear & rotary encoders, proxy switches, pneumatic & hydraulic valves, pneumatic cylinders, rolling diaphragm cylinders, rotary glands, recirculating ballscrews, bearings, gearboxes, belts & pulleys, etc.

“Cobden Chadwick” paper bag making machinery: former & breaker plates, brass pasting strips, folder (dipper) blades, gripper plates,  lump/nip runners, gears, rubber & canvas rings, stringing needles, Flexo print rollers & gears

“Nim-Cor” Airshafts & Airchucks: replacement bladder assemblies, springs & valves

“Ultra-Clean” Anilox & Parts cleaning systems: Plastic Media, replacement seals, filters, nozzles, air hose, etc.

For more Information, Pricing & Availability - Email: sales@cobdenchadwick.com
